Item# | Status | Description | Qty. | MSRP | Your Price | ||
---|---|---|---|---|---|---|---|
18551 | In Stock |

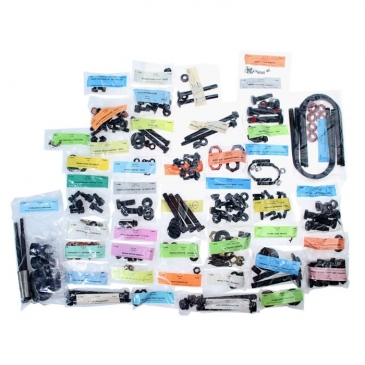

1971-1973 CHASSIS BOLT KIT 250 DISC |
$410.95 |
ADD TO CART
|
CHASSIS KIT INCLUDES:
- Accelerator Bellcrank to Firewall: Hex Washer Head Sheet Metal Screws, Serrated Flange Nuts (6)
- Axle Housing to Springs: 5-3/4" U-Bolts, Flange Nuts (12)
- Axle Retainer Plates: T-Bolts, Lock Nuts (16)
- Brake Booster to Firewall: Flange Nuts (4)
- Brake Cables to Body: Retaining Clips, Hex Nuts (6)
- Brake Calipers to Spindle: Drilled Grade-8 Bolts, Split Washers (8)
- Brake Drum Retainers: Green Push-On Retainers (6)
- Disc Brake Hoses to Body: Hex Washer Head Machine Screws, U-Clip (5)
- Brake Light Switch: Retaining Pin (1)
- Brake Pedal to Firewall: Flange Nuts (4)
- Brake Rotor Shields: Hex Screw and External Tooth Washer Assembly (6)
- Coil Spring Perches: Lock Nuts (4)
- Lower Control Arms to Shock Tower: Grade-8 Cam Bolts, Red Nuts, Washers (8)
- Upper Control Arms to Shock Tower: Grade-8 1/2"-13 Knurled Bolts, Red Nuts (12)
- Differential Carrier to Housing: Red Lock Nuts, Copper Washers (20)
- Driveshaft: 5/16" U-Bolts, Lock Nuts (6)
- Engine Body Brackets: Unified Bearing Stress Flange Bolts and Nuts (12)
- Engine Insulator to Block: Hex Screw and Split Washer Assembly (6)
- Engine Insulator to Body Brackets: 4-3/8" Unified Bearing Stress Flange Bolts and Nuts (4)
- Dual Exhaust Hangers: Hex Washer Head Machine Screws (12)
- Fuel Vapor Storage Canister: External Nut and Washer Assembly (3)
- Gas Tank: Carriage Bolts, Flange Nuts (4)
- Gas Tank Filler Neck Seal: Phillips Pan Head Sheet Metal Screws (4)
- Gas Tank Filler Neck with Twist Cap: Hex Washer Head Sheet Metal Screws (5)
- Chassis Grease Plugs: Hex Plugs (9)
- Idler Arm: Hex Bolts, Lock Nuts, Clipped Washers (6)
- Front Eye Leaf Springs: Flange Bolts and Nuts (4)
- Master Cylinder with Power Brakes: Flange Nuts (2)
- Parking Brake Control to Body: Hex Washer Head Serrated Screws (3)
- Pitman Arm to Gear Box: Hex Jam Nut, Split Washer (2)
- Proportioning Valve to Apron: Unified Bearing Stress Flange Nuts (2)
- Front Shock Brackets: Lower Heavy-Duty Carriage Bolts, Lock Nuts (12)
- Front Stabilizer Bar to Body: Hex Screw and Conical Spring Washer Assembly, Lock Nuts (8)
- Front Stabilizer End Links: Bolts, Retainers, Bushings, Spacers, Nuts (22)
- Steering Gear Box: Hex Bolts, Flat Washers (6)
- Steering Linkage: Slotted Nuts, Cotter Pins (21)
- Steering Rag Joint: 12-Point Bolt, 5/16"-18 Lock Nuts (3)
- Strut Rod Threaded Ends to Body: Lock Nuts (4)
- Strut Rods to Lower Control Arm: 1/2"-13 Special Knurled Bolts, Nuts, Pins (12)
- Rear Suspension Bumper: Lock Nut (1)
- Transmission Crossmember: Unified Bearing Stress Flange Bolts and Nuts (4)
- Transmission Insulator: Hex Bolts, Flange Nuts, Split Washers (9)
- Wheel Cylinders: 5/16"-18 Hex Screw and External Tooth Washer Assembly (4)
